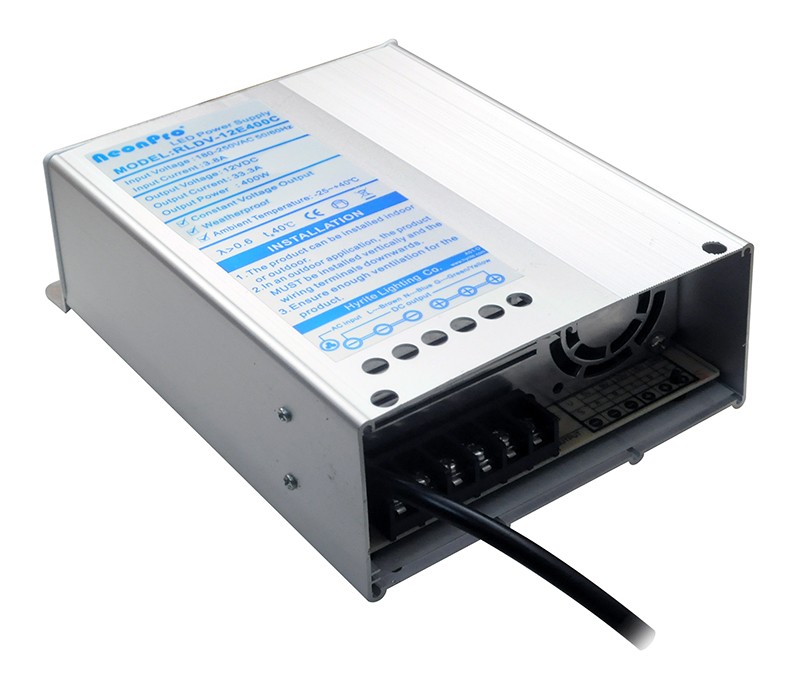

RLDV-500C
Quick Overview
-External driver for LED module, strip, flex ribbon, bar light, pixel
lamp, LED-neon tube, wall washer, panel light, etc...
-Constant voltage output.: 12V,24V
-Rainproof.
-Free air convection cooling with aluminum housing ,no electric fan
-100% burn-in test
SPECIFICATION
| Model no. | RLDV-12E500C |
|---|---|
| Model series | RLDV |
| Input voltage | 180-250 VAC 50/60 Hz |
| Power | 500 W max |
| Output type | Constant voltage |
| Efficiency | >89% |
| AC inrush current(max.) | Cold start, 40A@230VAC |
| Output voltage | 12/24 VDC ± 5% |
| Output current | 41.6 A ;20.8A Max |
| Withstand voltage | I/P~O/P:3kVAC, 1 minute |
| Operating temperature | -25~40℃ |
| Installation | Outdoor rainproof |
| IP rating | IP 44 |
| Cooling | Free air convection |

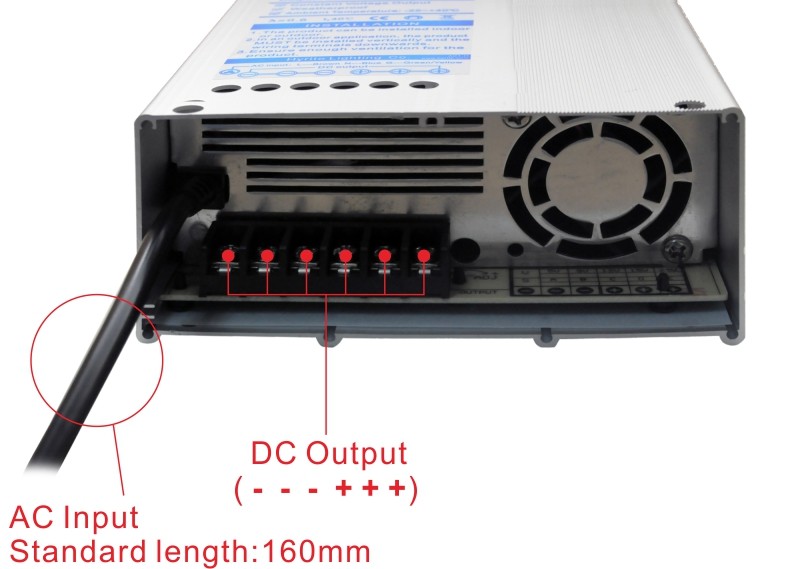

| Connection input/output | Input:terminal Output: terminal(Four) |

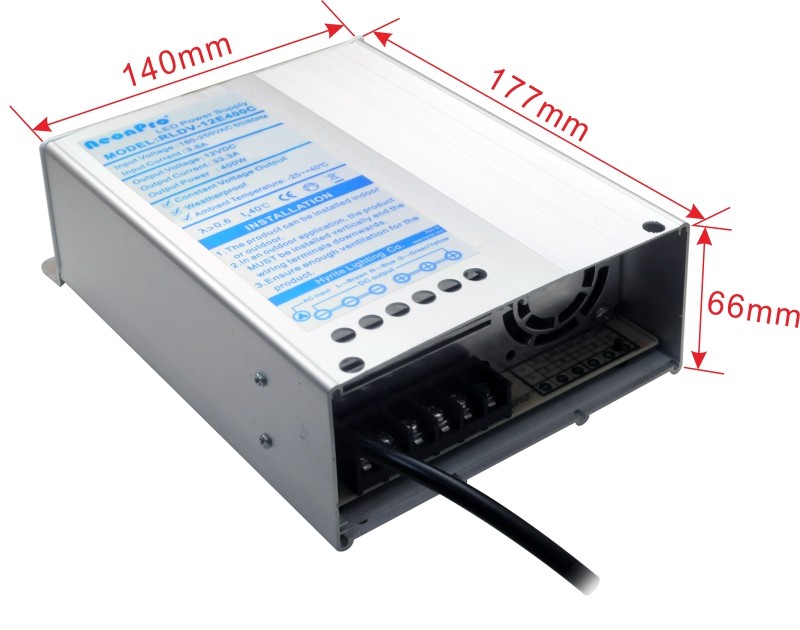

| Dimensions(L*W*H) | 177*140*66 mm |
| Weight(kg) | 1.2000 |
| Packing information | 20 Pcs/ Carton, G.W 24 KG |
